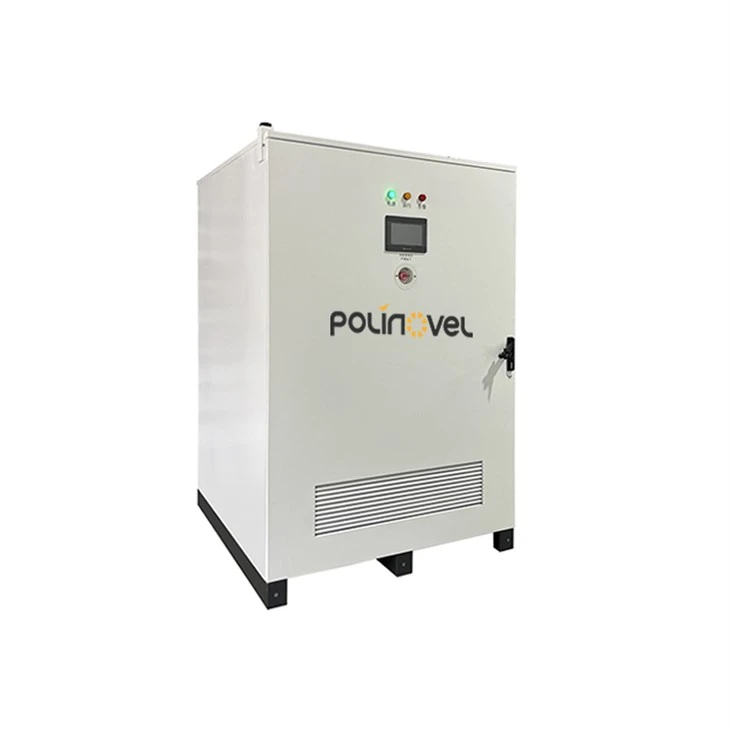

kW 121 kWh Shinggan Cabinet N-gun Hkringmang Dap gaw, battery pack, n-gun galai shai ai ladat (PCS), n-gun hpe hkang zing ai ladat (EMS), hte hpaji rawng ai nbung hpe hkang lu ai cabinet hta hpawng de da nna, gara shinggan makau grup yin hta raitim kam mai ai bungli hpe jaw ya lu ai.
Shi a modular all-in-one hkrang gaw, matut manoi, manu jahpu n jaw ra ai bungli ni a matu, ngang grin ai grid matut mahkai lam, peak shaving, hte backup power ni hpe madi shadaw ya ai sha n-ga, n-gun rawng ai hte gram lajang ai lam hpe asan sha galaw ya ai.
Na a n-gun ra kadawn ai lam ni a matu kaja dik htum galaw da ai
Matut manoi, kam mai ai n-gun jaw ai lam
121 kWh atsam hte 60 kW pru ai atsam gaw ahkyak ai lit ni a matu n-htum n-wai ai n-gun hpe madi shadaw ya ai, grid hpe ngang grin hkra madi shadaw ya ai hte bungli galaw ai aten hpe shayawm ya ai.
Hpaji rawng ai hte hpaji rawng ai hku hkang lu ai
Near-99% power galai shai ai atsam hte rawt jat galu kaba wa ai EMS coordination gaw n-gun lang ai lam hpe grau kaja hkra galaw ya lu ai, wan n-gun manu hpe shayawm ya lu ai hte bungli galaw ai lam yawng hpe grau kaja hkra galaw ya lu ai.
Hkum tsup ai shimlam makawp maga lam
Multi-level makawp maga lam hte hpaji rawng ai hku yu reng ai lam ni hpe lang da ai ndai system gaw masa lam shagu hta shim lum ai hku galaw lu na matu hte gram lajang ra ai lam ni hpe shayawm ya lu ai.
Robust Shinggan de galai shai lu ai atsam
Hkrak ai makau grup yin hta kam hpa mai ai hku galaw lu na matu, ngang grin ai arung arai ni hte shinggan-rated makawp maga lam ni hte engineer galaw da ai, kam hpa mai ai bungli galaw ai lam hpe shaning-ting tup galaw lu na matu.
Laksan masat masa
Battery masat masa
| Kasi | CBS120 |
| Rated wan n-gun | 806.4V |
| Rated atsam | 150Ah |
| Tsam n-gun | 121KWH |
| Bungli galaw ai Voltage n-gun | 655-920V |
| Series hte Parallel matut mahkai lam | 1P252S |
System masat masa
| Matut mahkai lam | 3P+N+PE |
| Rated n-gun | 60KW |
| Grid wan n-gun n-gun | 400V±15% |
| Grau htum ai galai shai ai atsam | 98.9% |
| Rated law law lang | 50/60Hz |
| Grid a chyahkring hkring | 47Hz-52Hz/56Hz-62Hz |
| Ya aten na yawng Harmonic n kaja ai lam | Rated power hta 3% hta n law ai (sh) maren sha re. |
| DC daw | <0.5% of rated output current |
| N-gun atsam | >0.99 |
Madung masat masa
| Matut mahkai lam | RS232/RS485/WiFi/4G/Ethernet |
| Katsi ai ladat | Nbung katsi ai |
| Wan sat ai ladat | Perfluoroheksanon |
| Bungli galaw ai nbung katsi ai | -25~50℃ (derating >Degri 40 ) |
| Hkring ai shara a katsi kahtet | -25~55 degri |
| Relative hka n-gun | 5%~95% (-n-gun n rawng ai) |
| Bungli galaw ai tsaw de | ≤4000m (derating >2000m ) |
| Mahku | <70dB |
| IP tsang | IP55 |
| Kaji (W*D*H) | 1200*1200*1800mm (47.2*47.2*70.9in) |
| Shen yu ai | Ton 1.5 |
Inverter ningbaw ningla ni hku nna masat da ai
Anhte a battery ni hpe mungkan ting masat da ai inverter galaw ai company law law kaw nna, htuk manu ai ngu tara shang masat da ai. Inverter platform amyu myu hta n-gun n rawng ai matut mahkai lam, kam mai ai bungli galaw ai lam, hkum tsup ai hku htuk manu ai lam ni hpe lu la na matu, arung arai langai hpra hpe grai sawng ai chyam dinglik ai lam hte jep joi ai lam ni hpe galaw lai wa sai.
System gawgap ai lam
CBS120 gaw, n-gun atsam hpe n-gun n rawng ai hku hkang lu ai hte kaja dik ai hku galaw lu ai, grai kungkyang ai raitim, asan sha chye na loi ai htingnu gawgap ladat hpe jai lang ai:
EMS n-gun hpareng ai shara
Ethernet hte 4G matut mahkai lam
PCS (Langai maga de n-gun galai shai ai jak) + BMS (Battery hparan ai ladat)
Grid/Load lahkawng maga na n-gun tara
Hkum hkrang hte grup yin hte seng ai lam ni
Shadawn shadang
1200 × 1200 × 1800 mm (galu × galu × galu)
Shen yu ai
1500kg
IP masat masa
IP55 (shinggan de makawp maga ai)
Nsen Madang
70dB hta n law ai (sh) maren sha re @1 meter
Bungli galaw ai nbung katsi
-20℃kaw nna 50℃(-4℃F kaw nna 122℃F)
Hkrung shara katsi ai
-25℃kaw nna 55℃(-13℃F kaw nna 131℃F)
Hkrum katut ai hka n-gun
5~95% (-n-htum ai)
Bungli galaw ai tsaw de
<4000m (derating >2000m)
Hkamja lam hte makawp maga lam
Battery hpe hparan ai lam
BMS htingnu gawgap ai lam hte langai hkrai a cell hpe yu reng ai
Wan sat ai lam
Perfluorohexanone hpe shi hkrai shi sat kau ai ladat
Katsi ai hpe hparan ai lam
Hpaji rawng ai nbung katsi ai jak
Makawp maga ai magam bungli ni
Grai n-gun dat ai/grai n-gun dat ai/grai n-gun/short circuit/insulation hpe mu tam ai/surge hpe makawp maga ai
Madung Magam Bungli ni
N-gun atsam hpe grau jai lang lu na matu hte system hpe kam hpa mai ai hku galaw da ai rawt jat galu kaba wa ai magam bungli ni.
Lam lahkawng hku n-gun galai shai ai lam
AC/DC lahkawng maga de galai shai ai lam hpe n-gun n rawng ai hku galaw lu ai.<20ms response time for charge/discharge switching. Features automatic grid-connected and off-grid mode transition, capable of supporting 100% rated load independently in islanded operation.
Business manu
Grid galai shai ai lam hpe hparan ya ai, peak shaving hku nna shaning shagu wan n-gun manu hpe 25-40% hkoi ya lu ai
Ultra-lawan ai mahtai jaw ai aten (<20ms)
N-gun n rawng ai grid-matut da ai/htum mat ai-grid galai shai ai lam
zunlawng masa hta 100% masat da ai load madi shadaw ai
Hpaji rawng ai n-gun atsam hparan hpareng ai lam (EMS)
Wan n-gun manu jahpu curve hte load hpe tau hkrau tsun ai hpe madung tawn nna, tinang hkrai charge/discharge galaw ai ladat. Web/APP interface hku nna tsan tsan kaw nna gram lajang mai ai, peak-valley arbitrage, ra kadawn ai lam hpe hkang ai, jan hpe tinang lang ai lam ni lawm ai bungli galaw ai ladat 6 hpe madi shadaw ya ai.
Business manu
N-gun atsam jai lang ai lam hpe kaja dik htum galaw ya ai, gumhpraw bang ai hpe 3-5 ning du hkra kadun hkra galaw ya ai
Tinang hkrai galaw ai manu jahpu- hpe madung tawn nna kaja dik htum galaw ai
6 hpe gram lajang mai ai bungli galaw ai ladat ni
Web/APP hku nna tsan tsan kaw nna gram lajang ai
Battery hpe madang hku hparan ai lam (BMS)
BMU+CBMS lahkawng-tier htingnu gawgap ai lam hpe jai lang nna, langai hkrai a cell 252 (voltage/temperature/SOC) hpe aten dep yu reng ai. Active balancing magam bungli gaw cell shai hkat ai lam hpe makawp maga ya ai<30mV, extending battery lifespan by 20%.
Business manu
System kam hpa mai ai lam hpe jat ya nna, gram lajang ai manu hpe 60% shayawm ya ai
Lahkawng-madang BMU+CBMS htingnu gawgap ai lam
252 cell hpe langai hkrai yu reng ai
Active rap ra ai lam (cell shai hkat ai lam<30mV)
Multi-layer shimlam makawp maga ai lam
Katsi majan hpe yu reng ai, wan hkut hpe mu lu ai, perfluorohexanone wan sat ai ladat ni hpe hpawng de da ai. Anomaly hpe mu ai hpang second 5 laman alarm hte power hpe jahkring kau ya ai. Hpaji rawng ai nbung hpe hkang lu ai atsam gaw battery hpe 25±5℃bungli galaw ai shara hta kaja dik htum tawn da ya ai.
Business manu
Masha hte arung arai ni hpe shim lum hkra galaw ya ai, insurance manu hpe shayawm ya ai
Katsi kahtet ai hte wan hkut hpe yu reng ai lam hpe hpawng de da ai
Second 5 laman lawan ai hku bai htang ai
Tengman ai nbung hpe hkang lu ai (25±5 degree)
Laika shawk shawn ai lam
Hpaga lam hte hpaga lam hta ra kadawn ai lam amyu myu a matu n-gun atsam hpe mahkawng da ai hparan ladat ni.
Hpaga lam hta grau tsaw ai shara hte ra kadawn ai lam hpe hparan ai lam
Shawk shawn ai
Hpaga lam galaw ai shara ni gaw, off-peak hours aten hta charge galaw nna, peak aten hta charge galaw ai line ni de charge galaw ai, lani mi hta charge/discharge cycle 2 tup madi shadaw ya ai
Hkrum sha ai lam ni hpe hparan ai
Ra kadawn ai manu kaba ai gaw wan n-gun manu hpe grai jat shangun ai
Madung lam ni
Aten-a-hkum hkrang charge/discharge ladat hte ra kadawn ai lam hpe hkang ai
Myit mada ai mahtai
Peak ra kadawn ai lam hte wan n-gun yawng a matu jai gumhpraw hpe shayawm ya nna, bungli galaw ai lam hpe grau kaja hkra galaw ya ai
Microgrid shingdu n-gun jaw ai
Shawk shawn ai
Data center (sh) tsi rung zawn re ai ahkyak ai shara ni a matu UPS hpe galai shai ya ai, second 1 laman hta n-gun n rawng ai off-grid backup power hpe jaw ya ai hte ahkyak ai lit ni a matu matut manoi bungli galaw lu hkra madi shadaw ya ai
Hkrum sha ai lam ni hpe hparan ai
Diesel generator ni gaw n-gun n law ai, nsen kaba ai, gram lajang ai lam grai law ai, grup yin hpe myit tsang ai lam ni nga ai .
Madung lam ni
Ultra-lawan ai hku galai shai ai, nsen n pru ai sha galaw ai, hte gram lajang ai lam n law ai
Myit mada ai mahtai
Power kam hpa mai ai lam kaba, n-gun n rawng ai aten hpe shayawm ya ai, bungli galaw ai lam hta yak hkak ai lam ni hpe shayawm ya ai, backup galaw ai shaloi zero emissions
Solar PV n-gun mahkawng da ai hpawng de ai lam
Shawk shawn ai
Nta ntsa (sh) ga ntsa e - jung da ai jan PV hpe shingbyi shara hte hpaw nna, ra kadawn ai aten hta grau law ai n-gun hpe rim la nna shapraw kau na matu
Hkrum sha ai lam ni hpe hparan ai
Jan n-gun shapraw ai hte jai lang ai lam lapran n htap htuk ai gaw, tinang - jai lang ai lam hpe shayawm ya nna, ROI hpe jahkring kau ya ai.
Madung lam ni
PV grid hpe hpaw shalawm ai, mahkawng da ai hpe hkang ai, n-gun hpe shim lum hkra galaw ai, hte ramp rate hpe hkang ai
Myit mada ai mahtai
Jan hpe jai lang ai lam hpe grau kaja hkra galaw ya ai, wan n-gun hpe grau hkrak hkra jaw ya ai, n-gun hpe grau kaja hkra hparan ya ai
EV charge galaw ai shara ra kadawn ai lam hpe hkang ai
Shawk shawn ai
Charger law law kalang ta bungli galaw ai shaloi, n-gun kaba dik htum hpe shayawm ya lu na matu, lawan ai charge galaw ai shara ni hpe shinggyin tawn da ai.
Hkrum sha ai lam ni hpe hparan ai
Hpa majaw nga yang, n-gun kaba ai - gaw transformer atsam hta grau ai majaw, manu dan ai grid hpe gram lajang ra ai
Madung lam ni
Peak shading ai, transformer grai law ai hpe makawp maga ai, hte charge galaw ai shara a n-gun hpe hkang ai
Myit mada ai mahtai
Grid matut mahkai ra ai lam hpe shayawm ya ai, manu dan ai npawt nhpang gawgap lam ni hpe gram lajang ai lam ni hpe koi ya ai, charge galaw ai lam ni a matu akyu lu na aten hpe kadun shangun ai
Hkrang hte bungli galaw ai lam
Kaja dik htum system bungli galaw lu na matu, install hte gram lajang ai ladat ni hpe gram lajang da ai.
Shinggan Ga Bum
N law htum gawgap ai lam hte hpaw da ai shara ni a matu kaja dik htum re
Akyu ni
Nta n ra ai, 2- ya tup jung ra ai, unit langai a manu kaji dik htum
Htap htuk ai mabyin masa ni
Laksan shara nga ai hpaga lam sun ni/charge galaw ai shara ni
Nta kata kaw bang ai
Hkrit tsang hpa shara ni a matu makawp maga da ai grup yin
Akyu ni
Hkamja lam hpe hkang lu ai grup yin, jak rung a prat hpe 15% galu shangun ai, gram lajang na matu shim lum ai
Htap htuk ai mabyin masa ni
Nta/sut rung shara nga ai arung arai ni
Container hpe hpaw shalawm ai
Jahtum na aten (sh) galai shai ra ai lam ni a matu mobile hparan ladat
Akyu ni
Hkrun lam tsaw ai, lawan ai hku htawt sit ai, grau kaja ai makawp maga ai masat masa
Htap htuk ai mabyin masa ni
Jahtum na n-gun/htingnu htinggaw jahpan/project-madung tawn ai application ni
Network masing jahkrat ai lam matsun
Grid matut mahkai lam
400V masum-phase manga-wire circuit hpe ap nawng da ra ai, circuit breaker a rated current 100A hta grau kaba ai (sh) maren sha re, cable cross-section 35mm2 hta grau kaba ai (sh) maren sha re.
Matut mahkai lam
Ethernet (ra sharawng ai) shing nrai 4G wireless matut mahkai lam, bandwidth ra ai 2Mbps hta grau kaba ai (sh) maren sha re, dynamic IP hpe madi shadaw ya ai
Spacing ra ai lam ni
Parallel units lapran 1m hta grau kaba ai (sh) maren sha re, Bunghku ni kaw nna 0.5m hta grau kaba ai (sh) maren sha re, katsi ai hpe shapraw kau lu na matu hte gram lajang ai lam hpe lu la na matu
Npawt nhpang gawgap lam
Concrete npawt nhpang n-gun 2 tons/m2 hta grau ai (sh) dai hte maren, jung ai madang 5mm/m hta n law ai (sh) dai hte maren, shinggan de jung ai shaloi marang shingbyi shara ra ai
Hkamja lam aten ladaw
| Lang masat | Magam bungli ni | Aten ladaw |
|---|---|---|
| Shani shagu | System masa hpe yu reng ai, alarm galaw ai | Minit 5 |
| Bat shagu | Remote data jep joi ai lam, bungli galaw ai lam hpe sawk sagawn ai shiga ni | Minit 20 |
| Shata shagu | On-site jep joi ai lam, nbung hte katsi ai shara ni hpe jasan jaseng ai | Minit 60 |
| Shata mali | Fastener jep yu ai, n-gun n-gun chyam yu ai, BMS shadawn shadang | Hkying hkum 2 |
| Shaning shagu | Grai sung ai hku gram lajang ai lam, firmware hpe gram lajang ai lam, makawp maga ai hku galai shai ai lam ni | Hkying hkum 4 |
Manu jahpu-Akyu ara sawk sagawn ai lam
Ja gumhpraw bang ai kaw na akyu hkam sha ai lam hte aten galu- manu hpe madun dan ai hkum tsup ai gumhpraw sawk sagawn ai lam.
Gumhpraw bang ai lam garan ginhka ai lam
Hardware manu
Battery, PCS, EMS, hte shinggan na htingnu ni hpe ka-up da ai
Install galaw ai magam bungli
Hkamja lam hte seng nna, htaw sa ai lam, jung ai lam, bungli galaw hpang ai lam ni lawm ai.
Software ahkang
Prat tup manu jahpu n jaw ra ai software gram lajang ai lam ni hte sumwi platform magam bungli ni lawm ai
Shaning shagu na bungli
Wan n-gun, insurance, hte matut manoi bungli galaw na matu ra ai arung arai ni hpe shinggrup da ai
Manu jahpu hkoi shap ai lam hpe shingdaw ai lam (vs Grid-Sha jaw ai)
Shaning shagu gumhpraw mahkawng da ai akyu ara
Wan n-gun hpe kaja dik htum galaw ai
N-gun atsam manu hpe shayawm ya ai
Peak shaving hte ra kadawn ai lam hpe hparan ai
Npawt nhpang gawgap lam hta gumhpraw bang ai lam hpe koi gam ai lam
ra kadawn ai lam hpe shayawm kau ya ai.
galai shai ai jak (sh) grid hpe gram lajang ai
Hkamja lam a matu jai gumhpraw hpe shayawm ya ai
Diesel wan jak ni hte shingdaw yang, bungli galaw ai a matu jai gumhpraw hpe shayawm ya ai
grup yin akyu ara
Carbon hpe shayawm ai masing ni hpe madi shadaw ya nna, ngang grin lam a yaw shada lam ni hpe madi shadaw ya ai.
vs Lead-Acid battery hpe shaning shagu shingdaw ai lam
Galai shai ai manu
Lead-acid battery ni hpe 3–5 ning shagu galai ra ai, LiFePO4 gaw 10-15 ning du hkra hkam kaja ai majaw galai shai ai aten hpe shayawm ya lu ai .
Kaja ai lam sum mat ai
LiFePO4 gaw, lead{2}}acid (≈70%) hta grau nna, n-gun sum ai lam hpe shayawm ya lu ai.
Hkring hkring gram lajang ai
LiFePO4 gaw gram lajang ai lam-n ra ai, rai tim lead-acid gaw electrolyte hpe ayan jep yu nna rap ra hkra galaw ra ai.
Gasat gala ai lam hta akyu nga ai
CBS120 gaw htunghking hparan ladat ni hte gat lawk hta shingjawng ai ni hpe gara hku lai di lu ai.
vs Htunghking Lead-Acid Battery hparan ladat ni
| Shadawn shadang | CBS120 (Asak hkrung lamPO4) | N-gang -Acid wan n-gun |
|---|---|---|
| Cycle Prat | 4000-6000 lang shingjawng ai | 300-500 lang shingjawng ai |
| Charge galaw ai atsam | 95-98% | 70-80% |
| Charge galaw ai lawan ai | 0.5C (hkying hkum 2 tup charge galaw ai) | 0.2C (hkying hkum 5 tup charge galaw ai) |
| Yu reng ai | Hkamja lam-n ra ai, tsan tsan kaw nna yu reng ai | Shata shagu na electrolyte, shata mali hta rap ra ai |
| grup yin hpe hkra machyi shangun ai | Eco-hku hkau ai | Hkrit tsang hpa nhprang arai |
| Cycle langai a manu | Kaji dik htum | Tsaw dik htum |
CBS120 a laklai ai akyu ara ni
Modular hkrang shapraw ai lam
PCS uphkang ai npu hta module-madang hpe hparan ai shanglawt ai battery module ni. Module langai hkrat sum mat yang system bungli galaw ai lam hpe n hkra ai
Availability >99.5%
System hkrat sum ai aten hpe shayawm ya ai
Shinggan IP55 makawp maga ai lam
Arung arai ni hpe ap nawng da ai nta n ra ai. Shinggan de hkrak jung ai gaw, mung shawa gawgap ai lam hte jung ai lam a yak hkak ai lam hpe shayawm ya ai
Ga nhpu/hka hpe makawp maga ya ai IP55 rating
-20℃~50℃nbung laru yawng hpe hkan sa ai
Perfluorohexanone wan sat ai lam
Htingbu htingbyen ni hpe n hkra ai perfluorohexanone wan sat ai tsi gaw htunghking heptafluoropropane hpe galai kau ai
Lawan ai hku dip sha ai mahtai
Battery n hkrat sum ai hte bai lang mai ai
Hpang jahtum na wan hkru shim lam madang ni hpe hkan sa ai
CBS120 hte n-gun hpe hkye la u
CBS120 Battery N-gun Hkringmang Dap gaw, lithium iron phosphate hpaji masa hte hpaji rawng ai n-gun hkangzing ai lam hku nna, hkum tsup ai manu hpe jaw ya ai:
Wan n-gun manu jahpu hpe hkye la lu ai
Peak shaving hte ra kadawn ai lam hpe hkang zing ai hku nna n-gun atsam manu hpe grai shayawm ya lu ai.
Gumhpraw bang ai gumhpraw bai wa na
Industry- woi awn ai lawan ai ROI, jai lang ai masa hta hkan nna shaning loi mi laman lu la mai ai.
Hkamja lam-Manu jahpu n jaw ra ai sha galaw ai4000-6000 cycle prat hte tsan tsan kaw na hpaji rawng ai hku yu reng ai 15 ning hkrang shapraw ai prat
System nga ai
99.5% uptime hpe modular hkrang shapraw ai lam hte law law -layer shimlam makawp maga ai lam hku nna kam mai ai
Wan manu hpe shayawm ya ai, wan n-gun hpe kam hpa mai ai lam hpe jat ya ai, ra kadawn ai lam ni hpe htai ya ai lamang ni hta shang lawm ai ni hpe tam ai hpaga hpung ni, hpaga yumga galaw ai shara ni, data center ni, charge station ni hpe galaw ai ni a matu kaja dik htum re. Kalang lang hka wa ai lam gaw 2–3 ning laman byin pru wa nna, aten galu-hpang jahtum na hka wa ai lam gaw shawng nnan na gumhpraw bang ai hta grau law ai.
