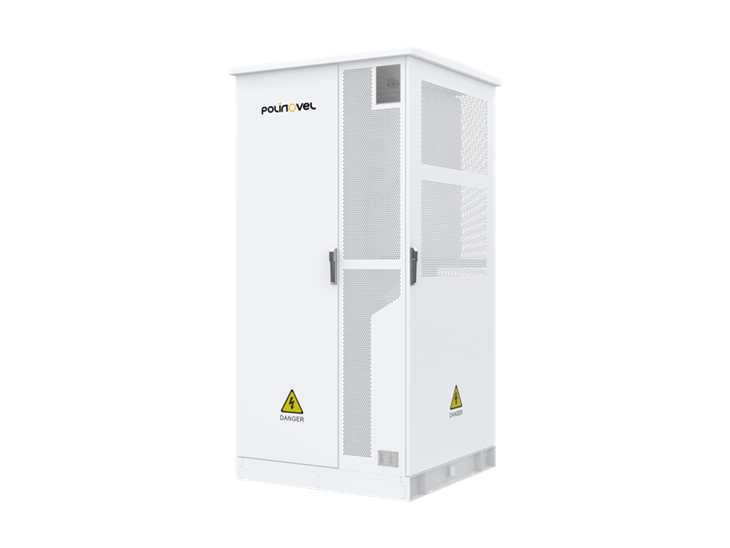

225kWh yawng-in-Sut masa & Hpaga lam BESS langai hta
225kWh C&I BESS gaw, hpaga lam hte bungli galaw ai shara ni hta jai lang na matu, all-in-one, turnkey n-gun atsam hparan ladat langai rai nga ai. IP55- masat da ai shinggan shingnip kata kaw tawn da ai, LiFePO4 battery pack ni, 60kW inverter, hpaji rawng ai BMS, nbung n-gun hpe hkang ai lam, shim lum ai lam ni hpe langai sha hta hpawng de da ai. Grid-matut mahkai ai, backup galaw ai, hte solar-plus-htingnut ai lam ni hpe madi shadaw ya ai, ndai system gaw lawan ai hku jai lang lu ai, ngang grin ai n-gun jaw lu ai, shinggan grup yin hta kam mai ai aten galu bungli galaw lu ai.
Shinggan na htingnu BESS · CBS225
225kWh Yawng-in-Nhtoi N-gun Hkringmang Dap langai - hpe langai mi yu yang
Hpaga lam hte bungli masing ni a matu shawng -hpaw da sai, nbung laru n hkrum hkra ai, turnkey battery tawn da ai cabinet
60 kW
Rated pru wa ai atsam
6,000+
70% SOH
IP55
Shinggan makawp maga ai masat masa
120kW
Max Nhtoi n-gun shang ai
10 ms
ATS htawt sit ai aten
Na a n-gun ra kadawn ai lam a matu kaja dik htum galaw da ai
Site kaw grau lawan ai hku deploy galaw u
Shinggan shinggan na cabinet langai hta yawng- gaw battery, inverter, BMS, hte makawp maga ai ladat ni hpe shingdu shingna langai hta sha hpawng de da ai. Factory kaw na shawng -hpaw da ai hkrang gaw, shara kaw na wiring hpe loi mi sha shayawm ya nna, n-gun dat ai hte bungli galaw hpang ai aten hpe kadun shangun ai. Tengman ai plug-hte-play BESS - hpe AC shang ai, PV shang ai, load pru ai hpe matut mahkai ya ai.
Shinggan grup yin a matu gawgap da ai
IP55-rated shingdu shingwang, active air-conditioning cooling, hte bungli galaw ai nbung katsi ai shara kaba gaw, shinggan n-gun ja ai masa hta kam mai ai hku bungli galaw lu hkra galaw ya ai, aten galu n yu n hkan galaw ai bungli hpe madi shadaw ya ai.
Jan n-gun hpe kaja dik htum jai lang u
120kW du hkra PV input hpe MPPT voltage range kaba hte madi shadaw ya ai, ndai system gaw jan a n-gun hpe atsawm sha hpaw shalawm ya lu ai, tinang hkum hpe - jai lang ai lam hpe grau law hkra galaw ya lu ai hte n-gun yawng hpe jai lang lu ai atsam hpe grau kaja hkra galaw ya lu ai.
Magam bungli hte gram lajang ai lam hpe asan sha galaw u
Cloud platform hku nna tsan tsan kaw nna yu reng ai lam, hpawng de da ai alarm ni, hte modular kata na hkrang masa ni gaw, lawan ai hku jep chyoi lu nna, asan sha gram lajang lu ai majaw, aten galu-bungli galaw ai manu hpe shayawm ya lu ai.
Laksan masat masa
| Kasi | CBS225 | |
| Battery masat masa ni | Cell amyu | LFP/314Ah |
| Batteri htinggaw | 16.07kWh/51.2V | |
| Pack jahpan | 14 | |
| Rated atsam | 225kWh | |
| Rated wan n-gun | 716.8V | |
| Rated ya aten | 150A | |
| Voltage n-gun | 627.2~806.4V | |
| Charge / jahkrat ai manu | 0.5C | |
| Max. Charge / Discharge galaw ai | 150A (75A+75A) | |
| AC pru ai masat masa ni (Grid ntsa) | Rated pru ai atsam | 60kW |
| Rated grid wan n-gun | 220/380Vac, 230/400Vac (3L+N+PE) | |
| Rated pru ai ya aten | 91.2A | |
| Rated grid lang hte lang | 50/60Hz ±0.3Hz | |
| Hprawng THDi | <3% (of nominal power) | |
| N-gun atsam | 0.8 gaw 0.8 hpang de woi sa wa ai | |
| Grai law hkra lit la lu ai atsam | 110% (ten galu), 140% (10s) | |
| AC pru ai masat masa ni (Backup n-gun) | Rated pru ai atsam | 60kW |
| N-gun kaba dik (-grid hpe pat kau ai) | 90kW, 10s | |
| Rated pru wa ai wan n-gun | 220/380Vac, 230/400Vac (3L+N+PE) | |
| Rated law law lang | 50/60Hz ±0.3Hz | |
| Load Motor atsam | 23HP | |
| Galai ai aten | 10ms (Ga shadawn) | |
| PV maga na masat masa ni | Max. PV shang ai n-gun | 120kW |
| Max. PV shang ai n-gun | 1000Vdc | |
| MPPT bungli galaw ai n-gun atsam | 150~850Vdc | |
| MPPT hkan tam ai ni a jahpan | 4 | |
| Max. PV shang wa ai |
40A/40A/40A/40A
|
|
| Max. Ya aten na n-gun kadun- |
60A/60A/60A/60A
|
|
| Grid / Wan jak shang ai | Shang bang ai wan n-gun n-gun | 0.85Un ~ 1.10Un |
| Shang bang ai n-gun atsam | 50/60Hz | |
| Bypass grai law ai n-gun (Inverter) | 200A | |
| ATS (Tinang hkrai htawt sit ai galai shai ai lam) | 250A | |
| AC dawm ai jak | 250A × 4 | |
| Kaga masat masa ni | Shadawn shadang (W×H×D) | 1900 × 2390 × 1300 mm |
| Shen yu ai | kg 2350 | |
| Bungli galaw ai nbung katsi ai | -30℃~+55℃(-22℃F~+131℃F) (Derating -15℃npu (sh) 45℃jan ) | |
| Bungli galaw na tsaw dik htum | 3000 m (>2000 m shayawm ai) | |
| Mahku | dB hta n law ai (sh) maren sha re. | |
| IP masat masa | IP55 | |
| Katsi ai ladat | Nbung shazim jak | |
| Wan sat ai ladat | Aerosol/Wan hkut hkam sha ai/Nsen hte nhtoi hpe sadi jaw ai | |
| Matut mahkai lam | Mai/RS485/TCP | |
| Cycle prat | 6000 lang shingjawng ai (25±2 degree, 0.5P / 0.5P, 70%SOH) | |
| Anti-n hkru n kaja ai madang | C3 | |
| Hkan nang hkan sa ai lam | UN38.3, GB/T36276 | |
Inverter ningbaw ningla ni hku nna masat da ai
CBS225 shinggan n-gun hpe shinggyin tawn ai htingnu hpe Deye, Growatt, GoodWe, SMA, Victron, Sunsynk, Solis, SAJ, Afore, Phocos, TBB, hte Studer ni hku nna tara shang masat da ai. Inverter–battery pairing langai hpra gaw, grai sawng ai matut mahkai lam hte makawp maga ai lam hpe chyam dinglik ai lam hpe lai di sai rai nna, grid-tied, off-grid, hte hybrid deployment hkrang masa ni hta kam mai ai hku bungli galaw lu na matu madi shadaw ya ai.
--Ndai Battery Hkringmang Dap hpe Hpa Majaw Lata Ai
Hpa majaw nga yang, EPC hpung ni gaw CBS225 shinggan n-gun shinggyin tawn ai cabinet hpe masat da ai lam mali
Anshinggan na gawk BESSdai gaw project manu hpe shayawm ya ai, aten masat ni hpe shayawm ya ai, ROI - hpe jat ya ai hpe jep chyoi mai ai specs ni hte madi shadaw ya ai.
6,000-Aten galu manu jahpu hpe teng sha chye lu na matu LiFePO4 Battery hpe shingjawng ai
0.5C kaw nna 70 % SOH (25 ± 2 degree) du hkra 6,000 lang chyam yu ai. Rated n-gun 716.8 V, 627.2–806.4 V lapran, 150 A (75 A + 75 A) n-gun n-gun grau law ai.N-gun kaba ai battery lam matsun
→ 15-ning tup na matu tau hkrau chye lu ai n-gun atsam manu - bankable solar battery shinggyin tawn ai bungli masing shagu a npawt nhpang.
01
Cabinet kata kaw wan hkru ai lam hpe makawp maga na matu masum lang-Layer - Shinggan Panel n ra ai
Aerosol hpe shi hkrai shi pat kau ya ai + wan hkut/hpyen n-gun hpe chye na ya ai + nsen hte nhtoi hpe sadi jaw ya ai - yawng hpe factory-chyam yu nna UN38.3 hte maren masat da ya sai. Shinggan BESS ni hpe jung ai hta manu jahpu hte aten ladaw hpe jat ya ai garan tawn da ai wan panel ni hpe galai shai ya ai integrated system langai mi re.
→ Nta hte insurance wan hkru ai lam hta ra kadawn ai lam ni hpe n-gun jaw ya ai.Hpa gaw shim lum ai BESS byin shangun ai kun?
02
250 A ATS gaw n-gun n rawng ai grid, wan jak hte battery galai shai na matu
AC lahkawng lang shang ai, 250 A hkum hkrang htawt sit ai switch, 200 A inverter bypass, 250 A × 4 AC garan ai jak ni nga ai. Shinggan na battery shingbyi shara gaw, 10 ms laman hta utility, diesel wan jak, hte battery lapran galai shai ai.
→ Ahkyak ai lit ni gaw n-gun kya ai-grid ginra ni hte off-grid microgrid n-gun shinggyin ai shara ni a matu ra kadawn ai - n-gun n-htum ai sha online kaw nga nga ai.
03
Cloud EMS - Laksan shingbyi shara law law a matu tsan ai shara kaw na sanghpaw li hpe hparan ai lam
CAN / RS485 / TCP hku matut mahkai ai lam galaw mai ai. Sumsing lamu dashboard gaw, na a yawng hta, peak-hka hkin gau hkan na tara jeyang ai lam, ra sharawng ai lam hpe htai ya ai lam, hkrit tsang hpa hpe shadut ai lam, hte firmware OTA - ni hpe galaw ya lu ai.BESS hpung ni hpe ka da ailogin langai kaw na.
→ Strategy galai shai na matu (sh) ana jep chyoi na matu truck roll n galaw ai. Hpyi shawn aiplatform hkrang shala
Ndai Shinggan na Solar Battery hpe shinggyin tawn da ai shara gaw gara kaw kaja dik htum galaw lu ai kun?
Sut masa lam hta n-gun kaba ai shading ai kaw nna, nhtoi htoi ai n-gun hpe jai lang ai hte off-grid zunlawng n-gun - du hkra, CBS225 gaw amyu myu hpe galaw ya ai.C&I n-gun mahkawng da aira kadawn nga ai.
Sut masa lam hta Peak Shaving
225 kWh off-peak, 60 kW hta discharge galaw ai aten hta - gaw rung ni, gat seng kaba ni, hte sutdek ni a matu shata shagu ra ai manu hpe hkrak shayawm kau ya ai. Dingda Africa zawn re ai aten-lang ai manu jahpu (sh) aten masat da ai load-shedding nga ai ginra ni a matu kaja dik ai, dai shara ni hta hpaga lam ni gaw utility n-gun yawm ai aten hta tau hkrau chye lu ai manu jahpu hpe hkoi shap ra ai.
Jan + Hkringmang Daju Tinang -Jai lang ai
Nta ntsa kaw na PV gaw MPPT hka htung 4 (120 kW, 150-850 V) hpe jaw ya ai. Ndai photovoltaic shinggyin la ai ladat gaw, Philippines hte Sinpraw Dingda Asia zawn re ai gat lawk ni hta nga ai jakrung ni, hkring sa shara ni, zunlawng ni a matu, shani aten hta grau law ai n-gun hpe shinggyin la lu nna, jan shang ngut ai hpang - jai lang ai lam hpe grau law hkra jai lang lu ai.
UPS shingdu n-gun
10 ms ATS htawt sit ai gaw tsi rung ni, data center ni, hte katsi ai-chain load ni hpe online kaw tawn da ya ai. 90 kW grid peak (10 s) hpe 23 HP du hkra mawdaw hpaw hpang ai surge ni hpe hparan ya ai. Bai nna, Nigeria hte Dingdung Africa mungdan ni hta nga ai telecom tower shara ni a matu LFP battery cabinet galai na matu mung jai lang ai, asak kaba sai lead-acid bank ni hpe gram lajang ai lam n galaw ai LiFePO4 hte galai shai ai.
N-gun kya ai-Grid & Zunlawng Microgrid
ATS auto- gaw 200 A bypass hte grid, generator, hte battery ni hpe ahkyak shatai ai lam hpe hparan ya ai. Africa hte Sinpraw Dingda Asia mungdan ting hta off-grid zunlawng ni hte n-gun kya ai-grid ginra ni hta sakse madun da ai.
CBS225 hpe jai lang ai ladat ni
CBS225 all-in-one n-gun shinggyin ai ladat a matu malai masing masa ni.Anhte hpe matut mahkai gaproject-laksan mabyin masa ni hpe sawk sagawn ai lam ni a matu.
🇿🇦 Dingda Africa - Gat seng kaba kaba hta n-gup magap hte shingbyi shara
CBS225 hpe Deye n-gun rawng ai n-gun rawng ai jak hte rau hpaw da ai. Load-htum mat ai aten ladaw ni hta shani shagu peak shaving galaw ai; anchor nta madu ni a matu n-gun n rawng ai battery backup. Mode: Peak Hkrang + UPS|N-gun: 716.8 V
🇵🇭 Philippines mungdan - zunlawng hkring sa shara kaw -Grid jan n-gun n-gun n-gun n-nga ai
120 kW nta ntsa PV gaw 4-channel hku nna MPPT gaw cabinet langai hta nga ai yawng hpe lusha jaw ai. Hkum tsup ai hku tinang hkrai galaw lu ai jan n-gun hpe mahkawng da ai gaw diesel wan jak hpe kam hpa ai lam hpe galai kau ya ai. Mode: Grid n lawm ai|Galai shai ai jak: Growatt
🇳🇬 Nigeria - Telecom Htingnu LFP Hkringmang Daju hpe galai shai na
CBS225 gaw tsan ai telecom shara ni hta asak kaba sai lead-acid bank ni hpe galai kau ya ai. 250 ATS langai gaw aten galu grid n-gun yawm ai aten hta online hku nna daw jau ai lam hpe galaw ya ai. IP55 shingdu shingwang gaw katsi ai shara ni hpe hparan ya lu ai. Mode: Hkrun lam UPS|Galai ai jak: SMA
FAQs - CBS225 Shinggan Cabinet N-gun Hkringmang Dap
San: Ndai all-in-one all-n-gun shinggyin ai cabinet hta gara wan hkru ai lam hpe makawp maga ai ladat hpe bang da ai kun?
A: Aerosol hpe pat shingdang ai + wan hkut/hpyen n-gun hpe chye na ai + nsen & nhtoi hpe sadi jaw ai - masum lang,allfactory-hpawng de hpaw da ai. Laksan firepanel n bang na matu.BESS shimlam hpe maram yu ai
San: Integrated cabinet hte split-hpan battery shinggyin ai ladat - hpa shai ai kun?
A: -hpan=hpe garan nna garan tawn da ai battery rack + inverter + wan n-gun + ATS, langai hte langai tinang a shingdu kaw, cabinet lapran na wire ni hpe bang da ai. CBS225 =yawng hpe 1.9 x 2.4 x 1.3 m IP55 shingnip (2,350 kg) langai hta bang da ai. Fallure point n law ai, lawan ai hku galaw hpang ai.BESS nta gawgap ai lam ni hpe shingdaw yu u
San: Ndai shinggan n-gun shinggyin ai ladat gaw gara operating modes ni hpe madi shadaw ya ai kun?
A: Grid - hpe gyit da ai (peak shaving / ra sharawng ai lam hpe htang ai), n-gun n rawng ai (jan + shingbyi shara hpe n-gun rawng ai), n-gun rawng ai (n-gun ja ai grid/PV/battery), hte UPSbackup (10 ms htawt sit ai). Yawng hpe EMS sumwi dashboard hku nna tsan tsan kaw nna galai mai ai.
San: ATS a automatic transfer switch gaw ahkyak ai lit ni hpe gara hku makawp maga ya ai kun?
A: 250 A ATS gaw AC shang ai lam lahkawng (grid n-gun dat) hpe yu reng ai. Primary source hkrat sum ai shaloi, 10 ms laman battery (sh) generator de htawt sit mat ai.
200 A bypass relay hpe gram lajang na matu lang ai. Priority order hpe gram lajang mai ai.
Q: Shinggan na battery shingbyi shara law law hpe kalang ta tsan tsan kaw nna yu mai na kun?
A: Rai sai. EMS sumwi platform gaw, shara law law hta sanghpaw li hparan ai lam - SOC, n-gun lwi ai lam hpe madi shadaw ya ai. cellstatus, MPPT langai hta PV shapraw ai lam, hte hkrit tsang hpa labau - yawng hpe dashboard langai kaw na shapraw ai. CAN / RS485 / TCP hku nna matut mahkai ai lam galaw ai.
San: Ndai hpaga yumga battery n-gun shinggyin ai ladat gaw gara masat masa ni hpe hkam la da ai kun?
A: Cell ni: UN38.3 (hpyen htaw sa ai lam hta shim lum lam). System GB/T 36276. IEC 62619, UL 9540A (sh) CE masat kumla ra ai gat lawk ni a matu, anhte gaw laksan masat masa galaw ai lam hpe madi shadaw ya ai.Ginra - hte seng ai laika buk ni a matu engineering hpe matut mahkai u
San: Ndai shinggan BESS cabinet hpe jung na matu gara shara hkyen lajang ra ai kun?
A: 2,350 kg a matu masat da ai n-gun ja ai concrete pad. 1900 x 2,390 x 1300 mm kaba ai. AC maga de nbung pru na matu hte chyinghka shang na matu atfront kaw clearance ahkang jaw u. Cable shang ai: lawu de. Forklift ra ai. Madung tsaw ai shara: 3,000 m (2,000 m jan de shayawm ai).Download galaw na matu lam matsun
